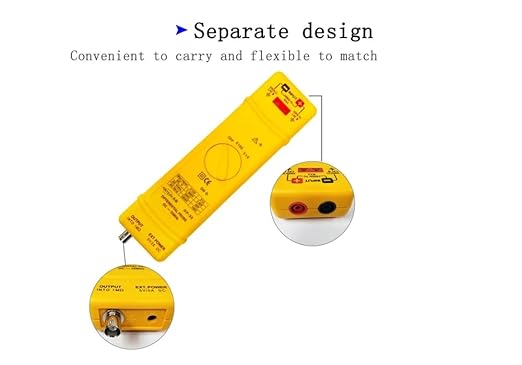

• DP-35 differential probe's maximum measurement voltage can be up to 1600Vp-p. The high voltage probe will help you with most high voltage situations.

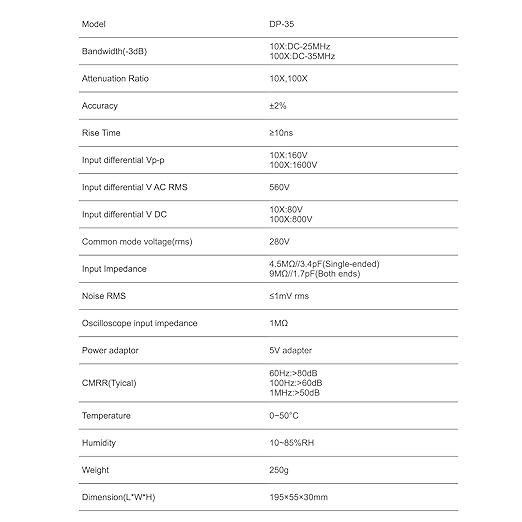

• The High Voltage probe with Bandwidth: DC-35MHz(100X), DC-25MHz(10X). Attenuation Ratio: 10X/100X. Accuracy: ±2%. Input resistance: 9MΩ//1.7pF(between the two ends); 4.5MΩ//3.4pF(Single-ended to ground).

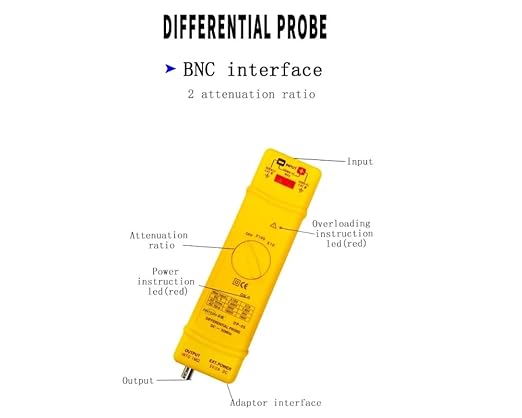

• Widely Used: Our oscilloscope probe features with BNC interface, compatible with a wide range of oscilloscopes, requiring only that the device be equipped with standard BNC connectors.

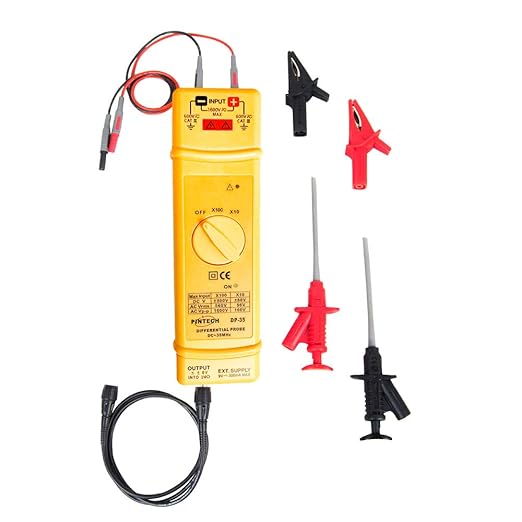

• Package Included: DP-35 differential probe host x 1, Adapter x 1, Alligator Clip x 2, Probe Hook x 2, BNC cable x 1, Dedicated input cable x 1, User Manual x 1.
• This oscilloscope differential probe offers high stability, long service life, reliability and precision. We provide one year after-sales service, you can contact us if you have any questions!
