About This

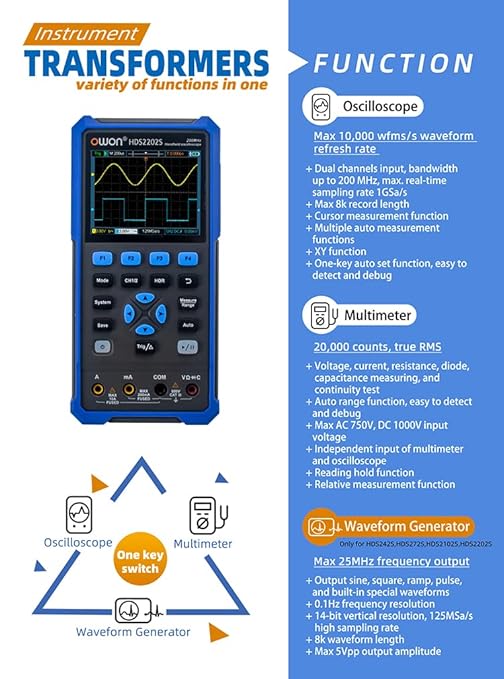

• 2+1 CH: 3 in 1 multi-function oscilloscope, built-in 1CH waveform generator, portable oscilloscope convenient for your job. Owing accurate detection function, well triggering ability of waveform generators and useful oscilloscope and 20,000 count resolution DMM
• HDS2202S: 200MHz bandwidth; 1GSa/s sample rate; 8K record length; 10,000 wfrms/s waveform refresh rate; 8 bits vertical resolution; 10mV/div - 10V/div vertical sensitivity; 6 kinds of testing modes; Max input voltage: AC 750V/DC 1000V; Max input current: DC 10A/AC 10A
• Generator Parameter: 25MHz Signal Generator; 125MSa/s Sampling Rate; 20 mVpp - 5 Vpp Amplitude Range (high impedance); 8K Waveform Length; 14bits Vertical Resolution; 50Ω Output Impedance; Frequency Output: Sine(0.1Hz - 25MHz), Square/Pulse/Arbitrary(0.1Hz - 5MHz), Ramp(0.1Hz - 1MHz)

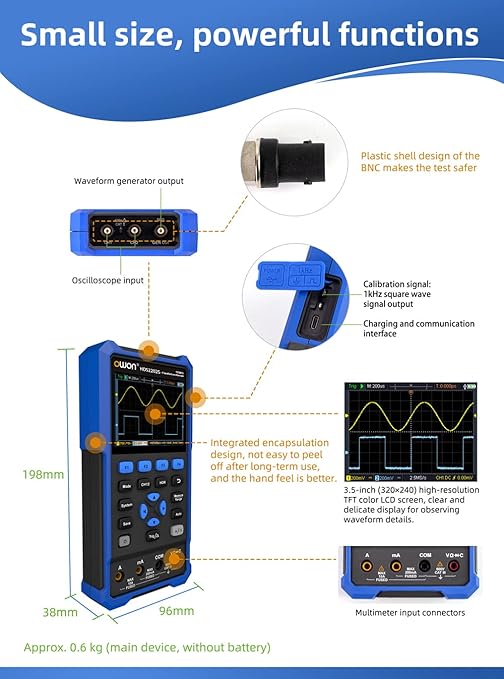

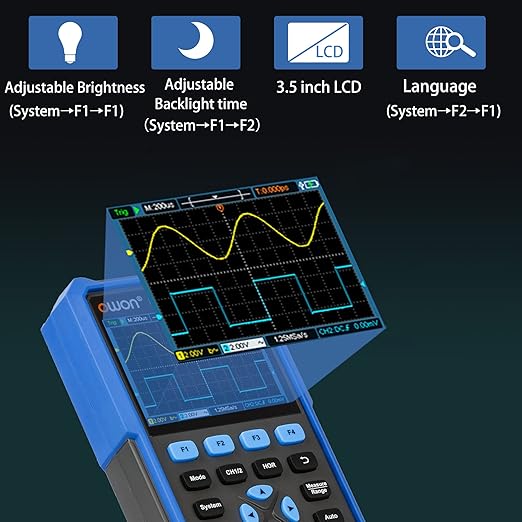

• Crisp LCD: 3.5 inch color LCD with adjustable brightness and backlight time, even though in dim ambient light situations or outdoor environment, digital oscilloscope can be intuitive in its read.Practical and intuitive menu page layout, it is intuitive and handy in its use
