About This

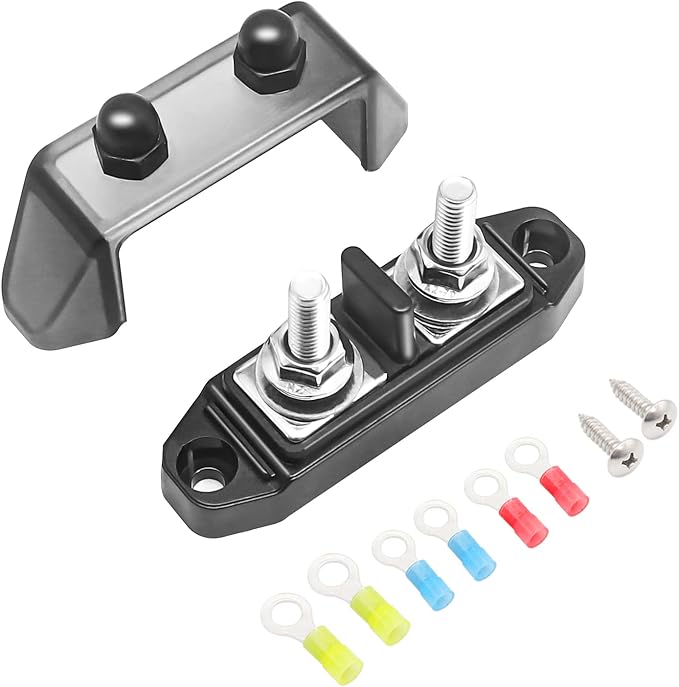

• Insulated TWO connections busbar with 2x M5 stainless steel studs. Comes with different gauge insulated 1/4” ring terminals and 2 x stainless steel screws.

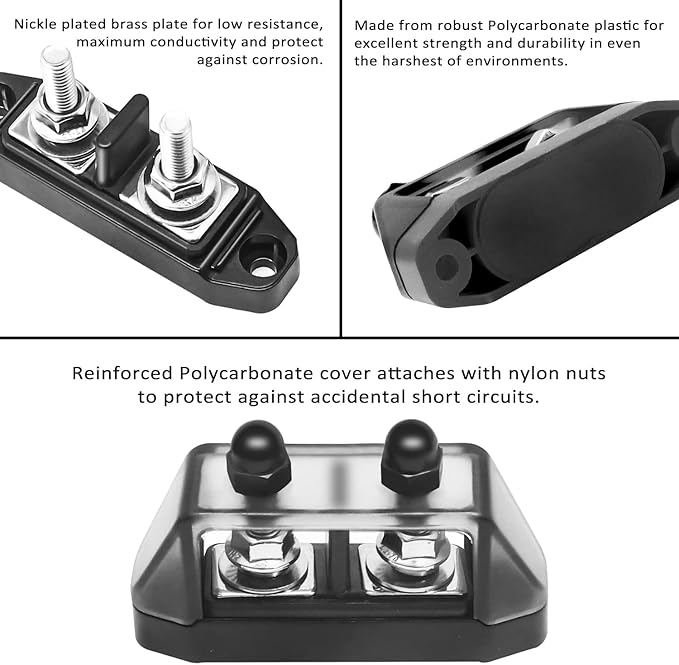

• Reinforced Polycarbonate cover attaches with nylon nuts to protect against accidental short circuits.

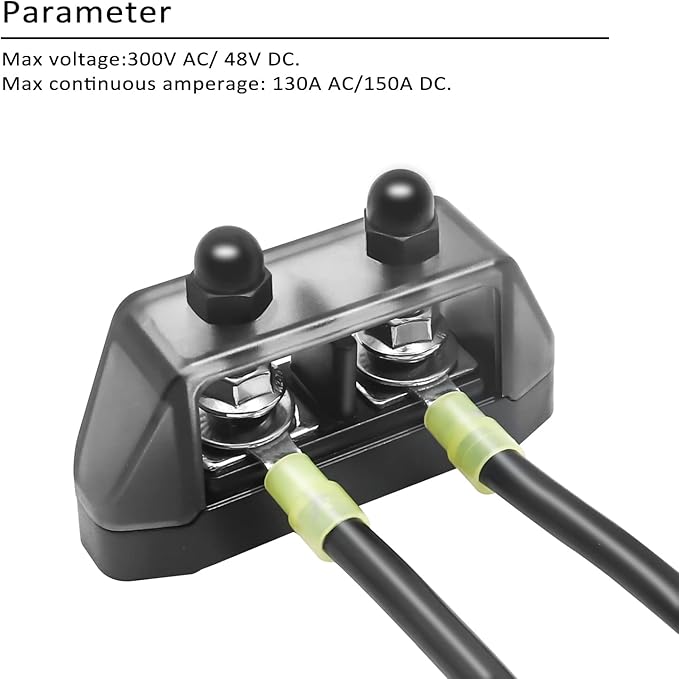

• Max voltage:300V AC/ 48V DC. Max continuous amperage: 130A AC/150A DC.
• Nickle plated brass plate for low resistance, maximum conductivity and protect against corrosion. Made from robust Polycarbonate plastic for excellent strength and durability in even the harshest of environments.

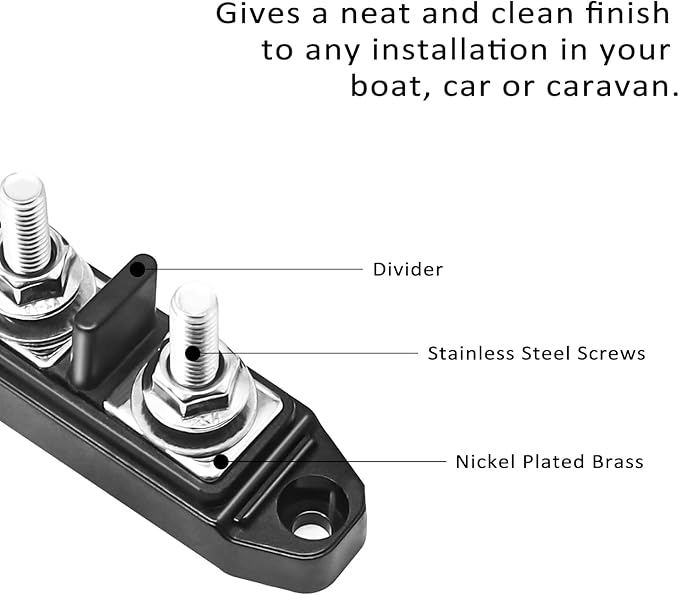

• Gives a neat and clean finish to any installation in your boat, car or caravan.

Overview

• Current Rating : 150 Amps
• Connector Type : Busbar
• Number Of Contacts : 2
• Mounting Type : Panel Mount
• Material : Brass, Polycarbonate (PC)
• Brand : RECOIL
• Voltage : 300 Volts
• Number Of Poles : 2
• Upper Temperature Rating : 1.3E+2 Degrees Celsius
• Temperature Range : 1.3E+2 Degrees Celsius
