About This

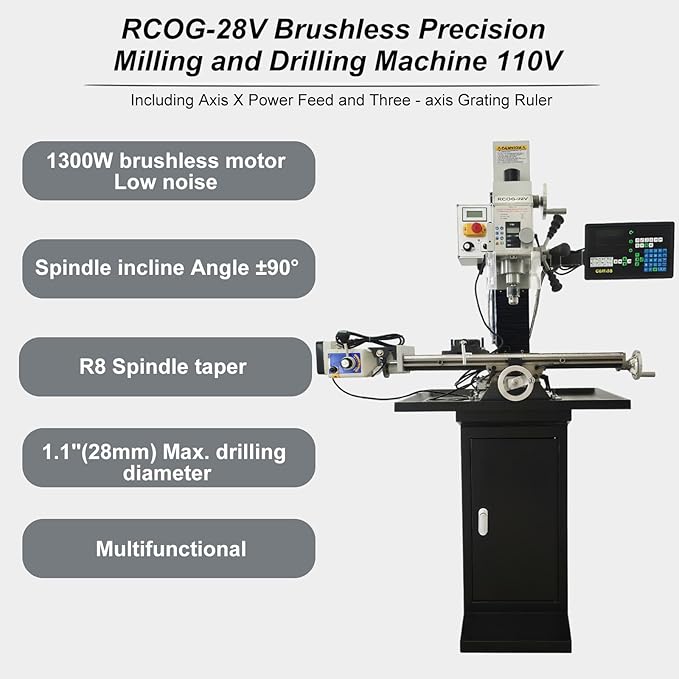

Precision Engineering -- Equipped with an ultra-accurate R8 spindle taper, ensuring versatility and precision for both milling and drilling tasks.Max. drilling diameter:1.1"(28mm)

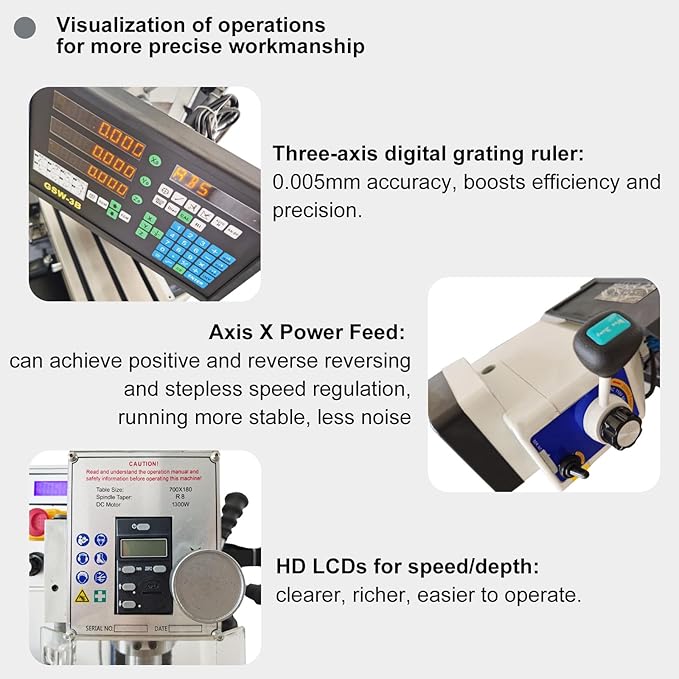

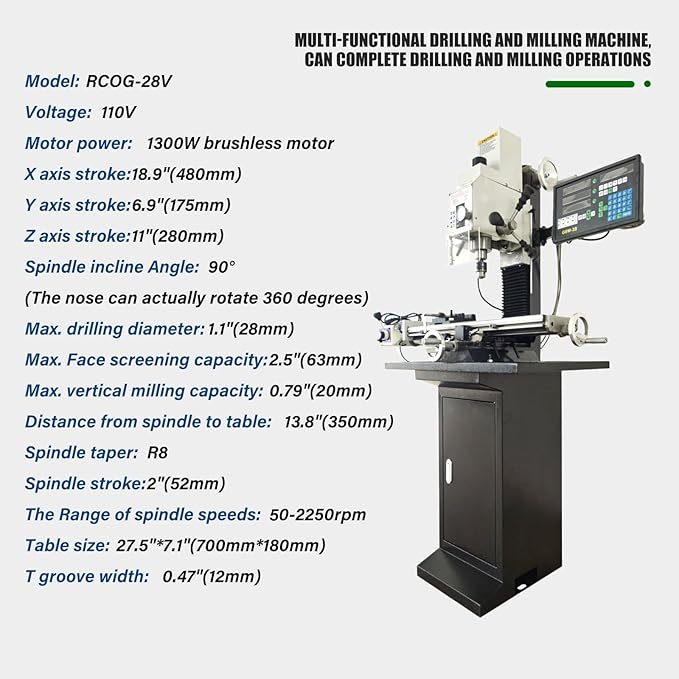

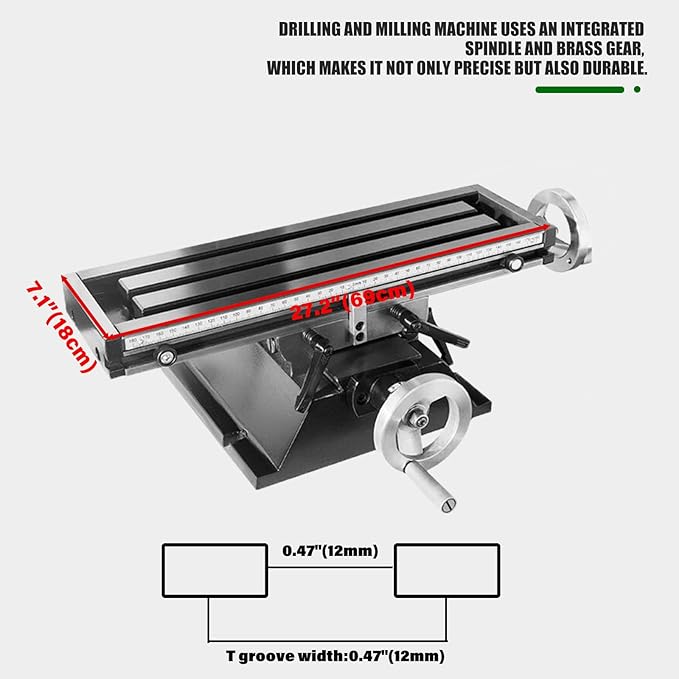

Enhanced Feed System -- Features an X-axis power feed for smooth, quiet operation, enhancing both efficiency and accuracy. The X-axis stroke is 18.9" (480mm), Y-axis stroke is 6.9", Z-axis stroke is 11", and the table size is 27.2" x 7.1". The power feed operates at 110V with 95W power and a speed range of 0-200rpm.

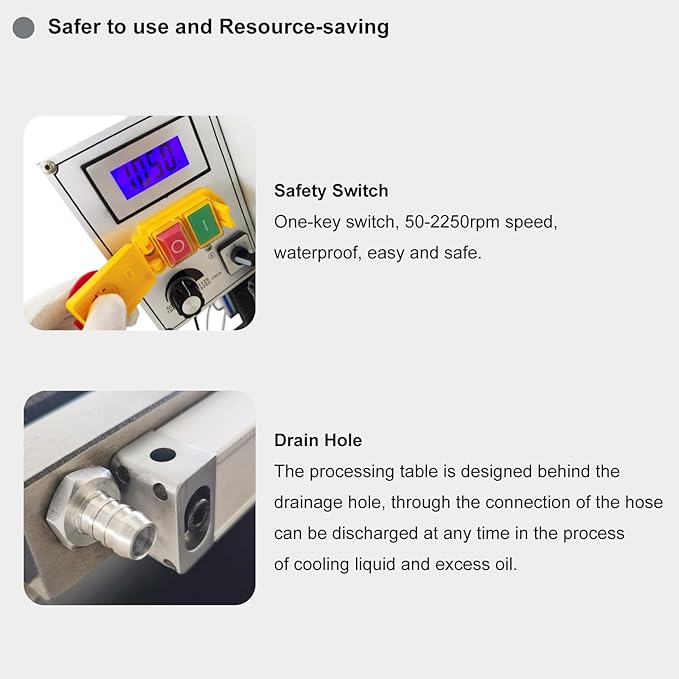

User-Friendly Controls -- Includes a one-key start/stop protection switch and a positive/negative switch, allowing for spindle speed adjustment between 50-2250rpm, making it easy and safe to operate. The waterproof switch adds an extra layer of safety.
90° Rotatable head -- The head of the machine can betilted to the left and to the right by loosening the fixing screws of the head of the machine.The tilt Angle range is up to 90°which is easy for drilling and milling special angles.

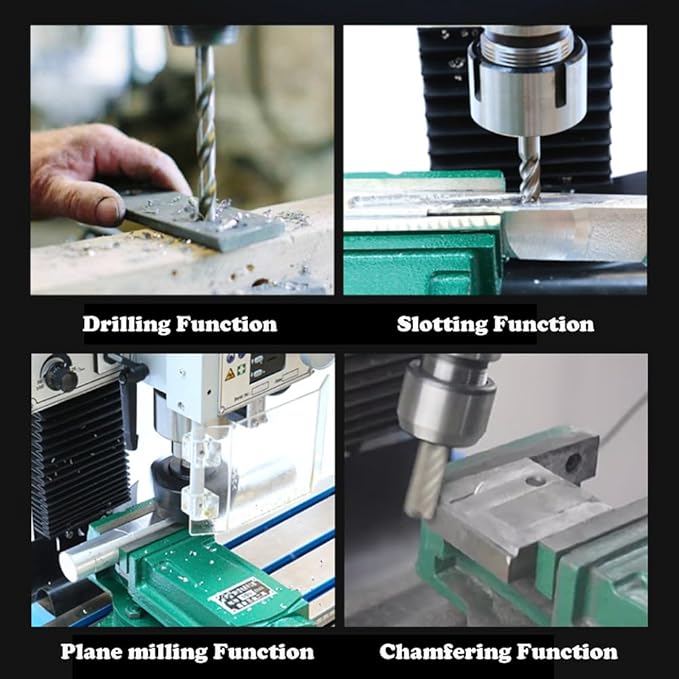

Durable and Versatile Build -- Constructed with metal gears, a robust shell, and a durable handwheel, this machine is built to last. Suitable for metal, wood, and hobby crafting, it offers stable performance and accurate positioning with an integrated cross table, making it perfect for both DIY and professional projects.

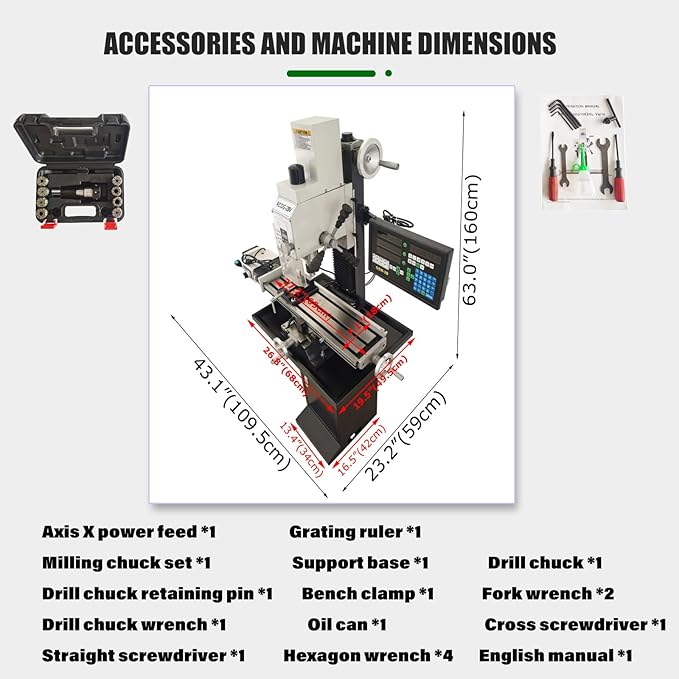

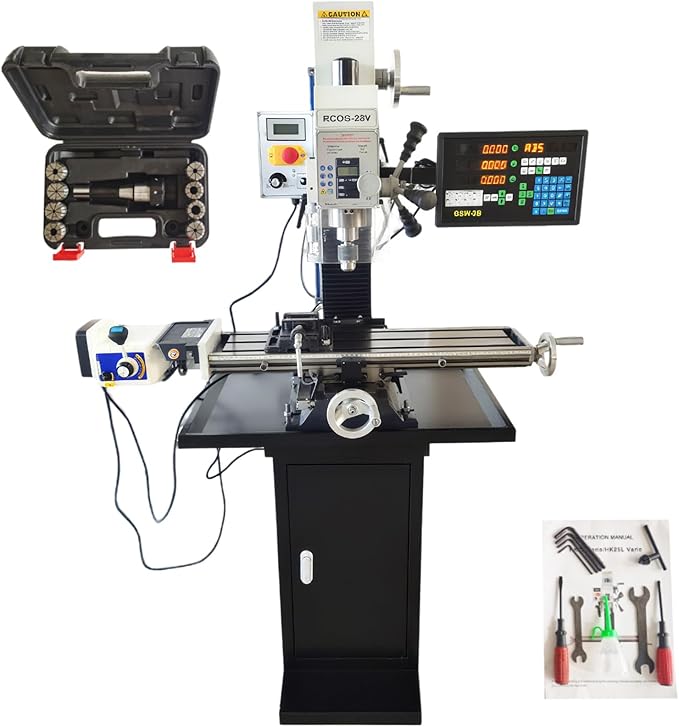

Complete Accessories -- This drilling and milling machine has a full range of accessories, including the support base and the corresponding milling chuck, with Milling chuck set (R8-ER32 : 4-3/6-5/8-7/10-9/12-11/16-15/18-17/20-19).Other accessories are Axis X power feed *1 Grating ruler *1 Drill chuck *1 Drill chuck retaining pin *1 Bench clamp *1 Fork wrench *1 Drill chuck wrench *1 Oil can *1 Cross screwdriver *1 Straight screwdriver *1 Hexagon wrench *4 English manual *1
Safe and User-Friendly -- Includes a forward/reverse switch and an emergency stop for secure operation. The handwheel scale is in millimeters, providing precise control.
